Visualization
Visualization of the XTS system without actual hardware or on an HMI in production can be accomplished in three ways.
- XTS Tool Window
available in dropdowns within XAE: TwinCAT > XTS > XTS Tool Window
- XTS Viewer
external application available on the Windows Start Menu
- TcHMI Package
A drop-in component available as a NuGet package in TcHMI
Labeling Stations

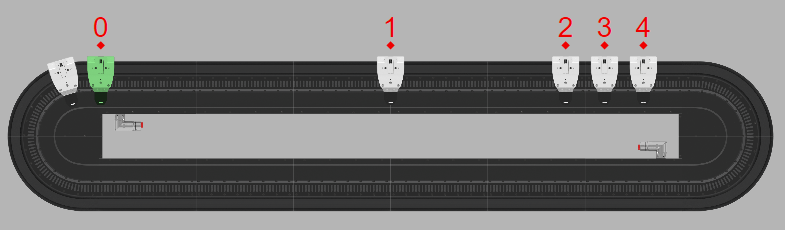

All three visualization tools allow for labeling stations to aid in following process flow during simulation, debugging, and production. The Station Name feature may need to be turned on in the settings window for any of these tools to get a display like the one shown below.

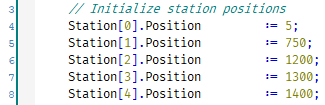

By default this code will automatically use the first 10 stations and their .Position value to place markers. Stations are identified by a number that matches their index in the MAIN.Station array. However if a station's position value is 0.0 (and likely unused) it will be skipped by the station marker routine.
Customizing Station Names
The name associated with each station by default is the station's index in MAIN.Station however a more meaningful name can be assigned. In the Solution Explorer locate TcCOM objects under System and then expand the Info Server branch. Rename these objects to match station names such as those shown below. Note that ordering is important. The order of this list matches the indices in MAIN.Station. On larger systems we recommend keeping then number as well as adding a descriptive name to help keep this section easy to navigate.
Adding Additional Stations
By default the code is configured for 10 stations in MAIN.Stations and 10 matching stations in the Info Server. Every station being labeled needs a matching station in the info server. However the code will determine if not enough Info Server stations are available and only label those that are available.
If you have increased the size of MAIN.Stations you should also consider increasing the number of stations in the Info Server to match. This allows all of them to have labels in the visualization tool. To add stations in the Solution Explorer locate TcCOM objects under System then expand the Info Server branch. Right click the info server branch and select Add New Item.

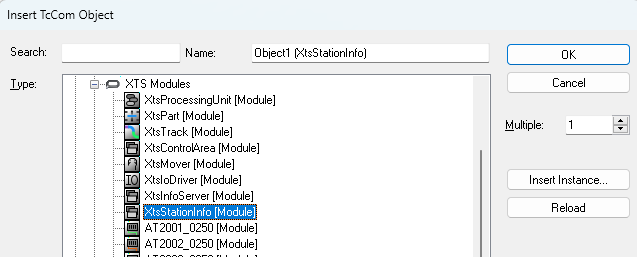

Then select XTS Modules > XtsInfoServer. You may also enter the number of stations to add at the right using the Multiple field.
Finally, edit the names of the new stations either by continuing numbering or naming them as described in Customizing Station Names
Disabling Automatic Station Naming
In more complex XTS systems and product flows the default station markers generated by the code may not be suitable, or you may have pre-defined stations using the XTS Configurator or manually with TcCOM objects. The station marker code will usually identify these pre-defined stations by looking for non-default values in the TcCOM objects and not overwrite them. But if necessary automatic naming of stations can be completely disabled by setting the the constant global variable Param.AUTO_POPULATE_STATIONS to FALSE.
Updating and Refreshing Stations
Station markers are only generated the first time movers are enabled after a cold start (typically power on or activate).
Additional Documentation
Documentation for the InfoServer and InfoServerStation object which is used by this code to mark stations is available on Infosys:
